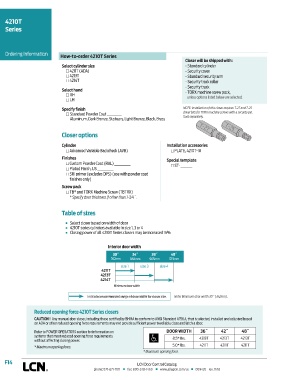

Page 256 - Herrajes Patricios - Catalogo LCN

4210T
Series

Ordering Information How-to-order 4210T Series
Closer will be shipped with:
Select cylinder size - Standard cylinder
4211T (ADA) - Security cover
4213T - Standard security arm
4214T - Security track roller
- Security track
Select hand
RH - TORX machine screw pack,
LH unless options listed below are selected.

Specify finish NOTE: Installation of this closer requires T-27 and T-25
Standard Powder Coat __________ driver bits for TORX machine screws with a security pin.
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass Sold separately.

Closer options

Cylinder Installation accessories
Advanced Variable Backcheck (AVB) PLATE, 4210T-18
Finishes Special template
Custom Powder Coat (RAL) ___________ ST- ________
Plated Finish, US ___________
SRI primer (excludes DPS) (use with powder coat
finishes only)
Screw pack
TB* and TORX Machine Screw (TBTRX)
* Specify door thickness if other than 1-3/4˝.

Table of sizes

n Select closer based on width of door
n 4210T series cylinders available in size 1, 3 or 4
n Closing power of all 4210T Series closers may be increased 15%

Interior door width
30˝ 34˝ 38˝ 48˝
762mm 864mm 965mm 1219mm
size 1 size 3 size 4
4211T
4213T
4214T
Minimum door width

Indicates recommended range of door width for closer size. Note: Minimum door width 30˝ (762mm).

Reduced opening force 4210T Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements 8.5* lbs. 4213T 4213T 4213T
without affecting closing power.
* Maximum opening force. 5.0* lbs. 4211T 4211T 4211T
* Maximum opening force.

F14 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
