4210T
Series

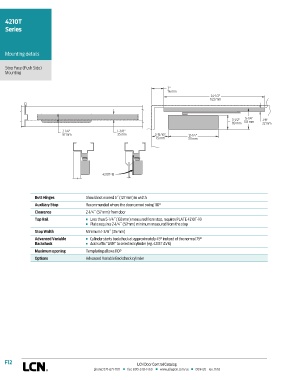

Mounting details

Stop Face (Push Side)
Mounting

3"
76 mm
24-1/2"
622 mm

3-1/2" 5-1/4" 7/8"
89 mm 133 mm 22 mm
2-1/4" 1-3/8"
57 mm 35 mm 2-15/16" 12-1/4"
75 mm 311 mm

4210T-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended where the door cannot swing 110°
Clearance 2-1/4˝ (57 mm) from door
Top Rail n Less than 5-1/4˝ (133 mm) measured from stop, requires PLATE 4210T-18
n Plate requires 2-1/4˝ (57mm) minimum measured from the stop
Stop Width Minimum 1-3/8˝ (35 mm)
Advanced Variable n Cylinder starts backcheck at approximately 45° instead of the normal 75°
Backcheck n Add suffix “AVB” to selected cylinder (eg. 4213T AVB)
Maximum opening Templating allows 110°
Options Advanced Variable Backcheck cylinder

F12 LCN Door Control Catalog
