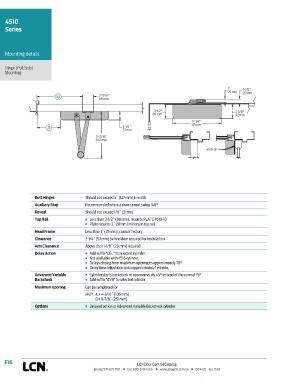

Page 258 - Herrajes Patricios - Catalogo LCN

4510
Series

Mounting details

Hinge (Pull Side)
Mounting

1" 1-1/8"
25 mm 29 mm
B 2-11/16"
68 mm
3-1/2" 3-5/8"
89 mm 92 mm
12-1/4"
311 mm
A 2-1/4"
57 mm
11-13/16"
300 mm
4510-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended where a door cannot swing 140°
Reveal Should not exceed 1/8˝ (3 mm)
Top Rail n Less than 3-1/2˝ (89 mm), requires PLATE 4510-18
n Plate requires 2˝ (51mm) minimum top rail
Head Frame Less than 1˝ (25 mm), consult factory
Clearance 2-1/4˝ (57 mm) behind door required for installation
Arm Clearance Above door 1-1/8˝ (29 mm) required
Delay Action n Add suffix “DEL” to selected cylinder.
n Not available with 4516 cylinder.
n Delays closing from maximum opening to approximately 70°.
n Delay time adjustable up to approximately 1 minute.
Advanced Variable n Cylinder starts backcheck at approximately 45° instead of the normal 75°
Backcheck n Add suffix “AVB” to selected cylinder
Maximum opening Can be templated for
140°: A = 4-3/16˝ (106 mm)
B = 9-7/8˝ (251 mm)
Options n Delayed action or Advanced Variable Backcheck cylinder
