2310ME
Series

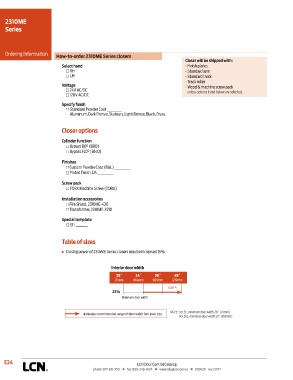

Ordering Information How-to-order 2310ME Series closers
Closer will be shipped with:
Select hand - Finish plates
RH - Standard arm
LH - Standard track
- Track roller
Voltage - Wood & machine screw pack
24V AC/DC unless options listed below are selected.
120V AC/DC
Specify finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer options

Cylinder function
Bypass 80° (B80)
Bypass 140° (B140)

Finishes
Custom Powder Coat (RAL) ___________
Plated Finish, US ___________

Screw pack
TORX Machine Screw (TORX)

Installation accessories
Fire Shield, 2310ME-420
Transformer, 2310ME-3210
Special template
ST- ________

Table of sizes

n Closing power of 2314ME Series closers may be increased 15%

Interior door width
28˝ 34˝ 38˝ 48˝
711mm 864mm 965mm 1219mm
size 4
2314
Minimum door width

NOTE: For SE, minimum door width 28˝ (711mm)
Indicates recommended range of door width for closer size.
For SEL, minimum door width 32˝ (813mm)

E24 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
