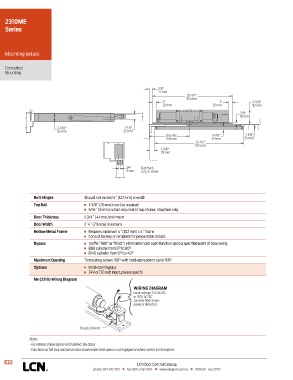

2310ME
Series

Mounting details

Concealed
Mounting

7/8"
22 mm
20-1/4"
514 mm
1" 1" 3-5/8"
25 mm 25 mm 92 mm
3/8"
10 mm

2-1/16" 1-1/4"
52 mm 32 mm
10-3/16" 1-1/16" 1-3/8"
259 mm 27 mm 35 mm
22-1/2"
572 mm
1-3/8"
35 mm

1/4" of track
6 mm to of closer

Butt Hinges Should not exceed 5˝ (127 mm) in width
Top Rail n 1-3/8˝ (35 mm) mortise required
n 5/16˝ (8 mm) cutout required at top of door, stop face only
Door Thickness 1-3/4˝ (44 mm) minimum
Door Width 2´4˝ (711 mm) minimum
Hollow Metal Frame n Requires minimum 4˝ (102 mm) x 4˝ frame
n Consult factory or template for preparation details
Bypass n (suffix “B80” or “B140”) eliminates hold-open function up to a specified point of door swing
n B80 cylinder from 0° to 80°
n B140 cylinder from 0° to 140°
Maximum Opening Templating allows 180° with hold-open points up to 160°
Options n Hold-open bypass
n 24V or 120 volt input, please specify
Me (2310) Wiring Diagram
WIRING DIAGRAM
Input voltage 24V AC/DC
or 120V AC/DC
(usually from alarm
panel or detector)

Chassis Ground

Notes
• For interior smoke barrier and labeled fire doors
• Functions as full rack and pinion door closer when hold-open is not engaged or when current is interrupted

E22 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
