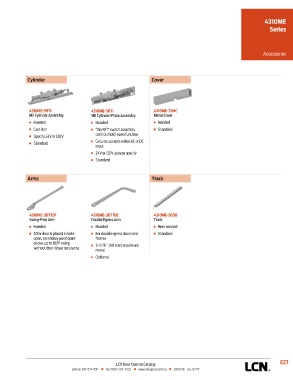

4310ME
Series

Accessories

Cylinder Cover

4310ME-3971 4310ME-3071 4310ME-72MC
ME Cylinder Assembly ME Cylinder/Plate Assembly Metal Cover
n Handed n Handed n Handed
n Cast iron n “On/Off” switch assembly n Standard
n Specify 24V or 120V controls hold-open function
n Circuitry accepts either AC or DC
n Standard
input
n 24V or 120V, please specify
n Standard

Arms Track

4310ME-3077SF 4310ME-3077DE 4310ME-3038
Swing-Free Arm Double Egress Arm Track
n Handed n Handed n Non-handed
n After door is placed in hold- n For double egress doors and n Standard
open, secondary pivot point frames
allows up to 160° swing n 2-11/16˝ (68 mm) maximum
without door closer resistance reveal
n Optional

E27
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
