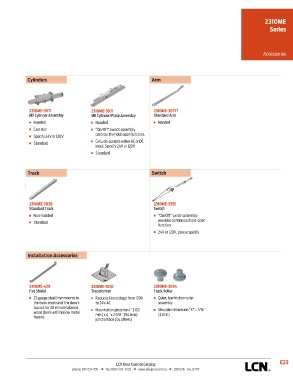

Page 217 - Herrajes Patricios - Catalogo LCN

2310ME
Series

Accessories

Cylinders Arm

2310ME-3971 2310ME-3071 2310ME-3077T
ME Cylinder Assembly ME Cylinder/Plate Assembly Standard Arm
n Handed n Handed n Handed WIRING DIAGRAM
INPUT VOLTAGE
24V AC/DC
n Cast iron n “On/Off” switch assembly (USUALLY FROM
OR 120V AC/DC
ALARM PANEL
OR DETECTOR)
n Specify 24V or 120V controls the hold-open function.
n Circuitry accepts either AC or DC CHASSIS GROUND
n Standard
input. Specify 24V or 120V
n Standard
Track Switch

2310ME-3038 2310ME-3351
Standard Track Switch
n Non-handed n “On/Off” switch assembly
provides continuous hold-open
n Standard
function
n 24V or 120V, please specify

Installation Accessories

2310ME-420 2310ME-3210 2310ME-3034
Fire Shield Transformer Track Roller
n 22 gauge steel liner mounts in n Reduces line voltage from 120V n Quiet, low friction roller
the track mortise of the door’s to 24V AC assembly
top rail for 20 minute labeled n Mounted on plate for 4˝ (102 n Shoulder dimension “X” = 1/16˝
wood doors with hollow metal mm) x 4˝ x 2-1/8˝ (54 mm) (2 mm)
frames
junction box (by others)

E23
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
