WIRING DIAGRAM 4040SE
INPUT VOLTAGE
24V AC/DC
OR 120V AC/DC Series
(USUALLY FROM
ALARM PANEL
OR DETECTOR)

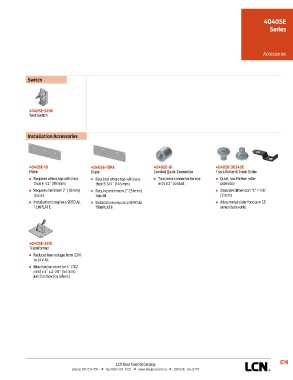

Accessories
CHASSIS GROUND

Switch

4040SE-3436
Test Switch

Installation Accessories

4040SE-18 4040SE-18PA 4040SE-81 4040SE-3034SE
Plate Plate Conduit Quick-Connector Track Roller & Track Slider
n Required where top rail is less n Required where top rail is less n Two piece connector for use n Quiet, low friction roller
than 3-1/2˝ (89 mm) than 5-3/4˝ (146 mm) with 1/2˝ conduit assembly
n Requires minimum 2˝ (51 mm) n Requires minimum 2˝ (51 mm) n Shoulder dimension “X” = 1/8˝
top rail top rail (3 mm)
n Installations require a SPECIAL n Installations require a SPECIAL n Alloy metal slider for use in SE
TEMPLATE TEMPLATE series tracks only

4040SE-3210
Transformer
n Reduces line voltage from 120V
to 24V AC
n Mounted on cover for 4˝ (102
mm) x 4˝ x 2-1/8˝ (54 mm)
junction box (by others)

E19
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
