4040SE
Series

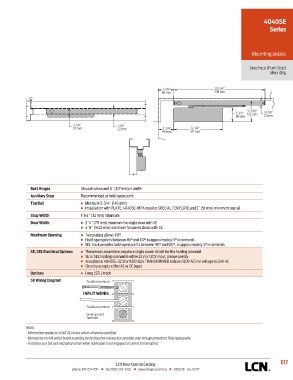

Mounting details

Stop Face (Push Side)
Mounting

3-7/8" 22-3/4"
98 mm 578 mm

5-3/16"
3-1/2" 132 mm 1-1/16"
89 mm 27 mm
2-1/4" 1-1/4"
57 mm 32 mm 3-3/4" 12-1/4"
95 mm 311 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point
Top Rail n Minimum 5-3/4˝ (146 mm)
n Installation with PLATE, 4040SE-18PA requires SPECIAL TEMPLATE and 2˝ (51 mm) minimum top rail
Stop Width 1-1/4˝ (32 mm) minimum
Door Width n 2´4˝ (711 mm) minimum for single door with SE
n 4´8˝ (1422 mm) minimum for paired doors with SE
Maximum Opening n Templating allows 110°
n Hold-open points between 85° and 110° in approximately 3° increments
n SEL track provides hold-open points between 90° and 120°‚ in approximately 3° increments
SE, SEL Electrical Options n These track assemblies require a single power circuit for the holding solenoid
n SE or SEL holding solenoid is either 24V or 120V input, please specify
n An optional 4040SE-3210 or 8310-824 TRANSFORMER reduces 120V AC line voltage to 24V AC
n Circuitry accepts either AC or DC input
Options n Long (SEL) track
SE Wiring Diagram To either terminal

INPUT WIRES

To either terminal
Green ground
Terminal

Notes:
• Information applies to 4040 SE closers unless otherwise specified
• Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable
• Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted

E17
