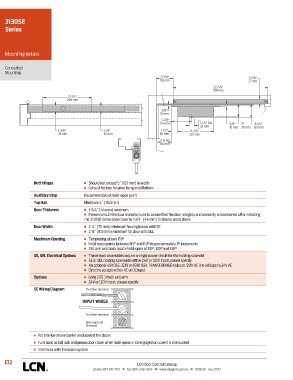

3130SE
Series

Mounting details

Concealed
Mounting
3-7/8" 1-1/16"
98 mm 27 mm
22-3/4"
578 mm
11-3/4"
298 mm
3/8"
10 mm
4-7/8"
124 mm 1-1/4" Dia. 5/8" 3" 3-1/4"
32 mm 16 mm 76 mm 83 mm
1-3/8" 1-1/4" 1-1/2" 8-3/4"
35 mm 32 mm 38 mm 222 mm
3-5/16"
84 mm

Butt Hinges n Should not exceed 5˝ (127 mm) in width
n Consult factory for pivot hung installations
Auxiliary Stop Recommended at hold-open point
Top Rail Minimum 4˝ (102 mm)
Door Thickness n 1-3/4˝ (44 mm) minimum
n Please consult the door manufacturer to assure that the door integrity and warranty is maintained after installing
the 3130SE Series door closer in 1-3/4˝ (44 mm) thickness wood doors
Door Width n 2´4˝ (711 mm) minimum for single door with SE
n 2´8˝ (813 mm) minimum for door with SEL
Maximum Opening n Templating allows 110°
n Hold-open points between 85° and 110° in approximately 3° increments
n SEL arm and track locate hold-open at 110°, 120° and 130°
SE, SEL Electrical Options n These track assemblies require a single power circuit for the holding solenoid
n SE or SEL holding solenoid is either 24V or 120V input, please specify
n An optional 4040SE-3210 or 8310-824 TRANSFORMER reduces 120V AC line voltage to 24V AC
n Circuitry accepts either AC or DC input
Options n Long (SEL) track and arm
n 24V or 120V input, please specify
SE Wiring Diagram To either terminal

INPUT WIRES

To either terminal
Green ground
Terminal
n For interior smoke barrier and labeled fire doors
n Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted
n Interfaces with fire alarm system

E12 LCN Door Control Catalog
