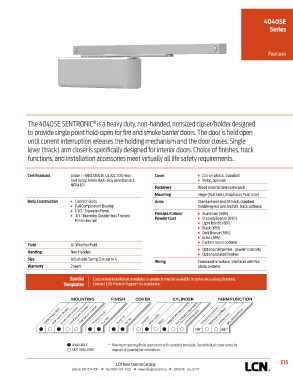

4040SE
Series

Features

®
The 4040SE SENTRONIC is a heavy duty, non-handed, nonsized closer/holder designed
to provide single point hold-open for fire and smoke barrier doors. The door is held open

until current interruption releases the holding mechanism and the door closes. Single
lever (track) arm closer is specifically designed for interior doors. Choice of finishes, track
functions, and installation accessories meet virtually all life safety requirements.

Certifications Grade 1 - ANSI A156.15, UL 10C, 100 Hour Cover n Clip-on plastic, standard
Salt Spray, Meets BAA - Buy American Act, n Metal, optional
NFPA 101
Fasteners Wood and machine screw pack
Mounting Hinge (Pull Side), Stop Face (Push Side)
Body Construction n Cast Iron Body Arms Standard arm and SE track, standard
n Full Complement Bearing Double egress arm and SEL track, optional
n 1-1/2˝ Diameter Piston Finishes/Colors/ n Aluminum (689)
n 3/4˝ Diameter Double Heat Treated Powder Coat n Statuary Bronze (690)
Pinion Journal
n Light Bronze (691)
n Black (693)
n Dark Bronze (695)
n Brass (696)
n Custom colors optional
Fluid All Weather Fluid
n Optional SRI primer - powder coat only
Handing Non-Handed
n Optional plated finishes
Size Adjustable Spring Size, up to 4
Wiring Concealed or surface, interfaces with fire
Warranty 2 years alarm systems

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
MULTI-POINT HOLD-OPEN
CONCEALED (FRAME)
REGULAR (DOUBLE)
TOP JAMB (PUSH)
HINGE (PULL) SIDE STOP FACE (PUSH) CONCEALED (DOOR) PLATED PLASTIC METAL HANDED NON-SIZED SIZED SINGLE POINT HOLD-OPEN BYPASS 80/140 STANDARD (SINGLE) SWING FREE DOUBLE EGRESS
POWDER COAT
110 95

AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
NOT AVAILABLE degrees of opening per installation.

E15
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
