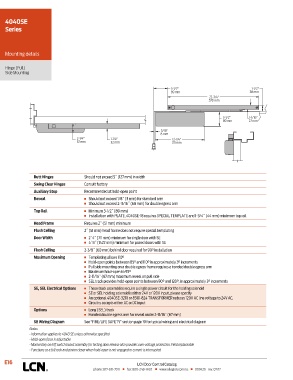

4040SE
Series

Mounting details

Hinge (Pull)
Side Mounting

3-1/2" 1-1/2"
89 mm 38 mm
22-3/4"
578 mm

3-1/2" 1-1/16"
89 mm 27 mm

5/16"
8 mm
2-1/4" 1-1/4" 12-1/4"
57 mm 32 mm 311 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Swing Clear Hinges Consult factory
Auxiliary Stop Recommended at hold-open point
Reveal n Should not exceed 1/8˝ (3 mm) for standard arm
n Should not exceed 2-11/16˝ (68 mm) for double egress arm
Top Rail n Minimum 3-1/2˝ (89 mm)
n Installation with PLATE, 4040SE-18 requires SPECIAL TEMPLATE and 1-3/4˝ (44 mm) minimum top rail
Head Frame Requires 2˝ (51 mm) minimum
Flush Ceiling 2˝ (51 mm) head frame does not require special templating
Door Width n 2´4˝ (711 mm) minimum for single door with SE
n 4´8˝ (1422 mm) minimum for paired doors with SE
Flush Ceiling 2-3/8˝ (60 mm) behind door required for 90° installation
Maximum Opening n Templating allows 110°
n Hold-open points between 85° and 110° in approximately 3° increments
n Pull side mounting on a double egress frame requires a handed double egress arm
n Maximum hold-open to 95°
n 2-11/16˝ (67 mm) maximum reveal on pull side
n SEL track provides hold-open points between 90° and 120°‚ in approximately 3° increments
SE, SEL Electrical Options n These track assemblies require a single power circuit for the holding solenoid
n SE or SEL holding solenoid is either 24V or 120V input, please specify
n An optional 4040SE-3210 or 8310-824 TRANSFORMER reduces 120V AC line voltage to 24V AC.
n Circuitry accepts either AC or DC input
Options n Long (SEL) track
n Handed double egress arm for reveal under 2-11/16˝ (67 mm)
SE Wiring Diagram See “FIRE/LIFE SAFETY” section page 19 for typical wiring and electrical diagram
Notes:
• Information applies to 4040 SE unless otherwise specified
• Hold-open force is adjustable
• Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable
• Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted

E16 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
