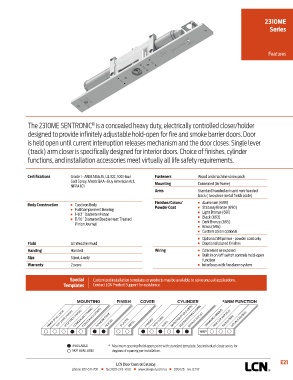

2310ME
Series

Features

®
The 2310ME SENTRONIC is a concealed heavy duty, electrically controlled closer/holder
designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. Door
is held open until current interruption releases mechanism and the door closes. Single lever
(track) arm closer is specifically designed for interior doors. Choice of finishes, cylinder

functions, and installation accessories meet virtually all life safety requirements.

Certifications Grade 1 - ANSI A156.15, UL 10C, 100 Hour Fasteners Wood and machine screw pack
Salt Spray, Meets BAA - Buy American Act, Mounting Concealed (in frame)
NFPA 101
Arms Standard handed arm and non-handed
track ( two piece metal finish plate)
Finishes/Colors/ n Aluminum (689)
Body Construction n Cast iron Body Powder Coat n Statuary Bronze (690)
n Full Complement Bearing n Light Bronze (691)
n 1-1/2˝ Diameter Piston n Black (693)
n 11/16˝ Diameter Double Heat Treated n Dark Bronze (695)
Pinion Journal
n Brass (696)
n Custom colors optional
n Optional SRI primer - powder coat only
Fluid All Weather Fluid n Ooptional plated finishes
Handing Handed Wiring n Concealed or exposed
n Built in on/off switch controls hold-open
Size Sized, 4 only
function
Warranty 2 years n Interfaces with fire alarm system

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
MUL TI-POINT HOLD-OPEN
CONCEALED (FRAME)
REGULAR (DOUBLE)
HINGE (PULL) SIDE STOP FACE (PUSH) CONCEALED (DOOR) PLATED PLASTIC METAL HANDED NON-SIZED SIZED SINGLE POINT HOLD-OPEN BYPASS 80/140 ST ANDARD (SINGLE) SWING FREE DOUBLE EGRESS
TOP JAMB (PUSH)
POWDER COAT
160°

AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
NOT AVAILABLE degrees of opening per installation.

E21
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
