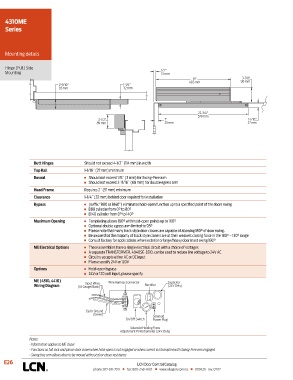

4310ME
Series

Mounting details

Hinge (Pull) Side
Mounting 1/2"
13 mm
19" 3-7/8"
483 mm 98 mm
2-9/16" 1-1/4"
65 mm 32 mm

22-3/4"
578 mm
3-1/2" 1" 1-1/16"
89 mm 25 mm 27 mm

Butt Hinges Should not exceed 4-1/2˝ (114 mm) in width
Top Rail 1-1/16˝ (27 mm) minimum
Reveal n Should not exceed 1/8˝ (3 mm) for Swing-Free arm
n Should not exceed 2-11/16˝ (68 mm) for double egress arm
Head Frame Requires 2˝ (51 mm) minimum
Clearance 1-1/4˝ (32 mm) behind door required for installation
Bypass n (suffix “B80 or B140”) eliminates hold-open function up to a specified point of the doors swing
n B80 cylinder from 0° to 80°
n B140 cylinder from 0° to 140°
Maximum Opening n Templating allows 180° with hold-open points up to 160°
n Optional double egress arm limited to 95°
n Please note that many track style door closers are capable of allowing 180° of door swing.
n Be aware that the majority of track style closers are at their weakest closing force in the 180° – 130° range
n Consult factory for applications where exterior or large/heavy door must swing 180°
ME Electrical Options n These assemblies have a single electrical circuit with a choice of voltages
n A separate TRANSFORMER, 4040SE-3210, can be used to reduce line voltage to 24V AC
n Circuitry accepts either AC or DC input
n Please specify 24V or 120V
Options n Hold-open bypass
n 24V or 120 volt input, please specify
ME (4310, 4410) Wire Harness Connector Capacitor
Input Wires
Wiring Diagram (18 Gauge Black) Rectifier (24V Only)

Earth Ground
(Green) Solenoid
On/Off Switch Power Plug
Solenoid Holding Force
Adjustment Potentiometer (24V Only)
Notes:
• Information applies to ME closer
• Functions as full rack and pinion door closer when hold-open is not engaged or when current is interrupted with Swing-Free arm engaged
• Swing free arm allows door to be moved without door closer resistance
E26 LCN Door Control Catalog
