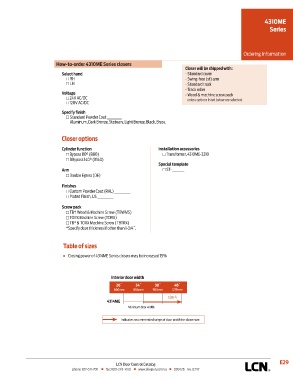

Page 223 - Herrajes Patricios - Catalogo LCN

4310ME
Series

Ordering Information

How-to-order 4310ME Series closers
Closer will be shipped with:
Select hand - Standard cover
RH - Swing-free (sf) arm
LH - Standard track
- Track roller
Voltage - Wood & machine screw pack
24V AC/DC unless options listed below are selected.
120V AC/DC

Specify finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer options

Cylinder function Installation accessories
Bypass 80° (B80) Transformer, 4310ME-3210
BBypass 140° (B140)
Special template
Arm ST- ________
Double Egress (DE)

Finishes
Custom Powder Coat (RAL) ___________
Plated Finish, US ___________

Screw pack
TB*, Wood & Machine Screw (TBWMS)
TORX Machine Screw (TORX)
TB* & TORX Machine Screw (TBTRX)
*Specify door thickness if other than 1-3/4˝.

Table of sizes

n Closing power of 4314ME Series closers may be increased 15%

Interior door width
26˝ 34˝ 38˝ 48˝
660mm 864mm 965mm 1219mm
size 4
4314ME
Minimum door width

Indicates recommended range of door width for closer size.

E29
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
