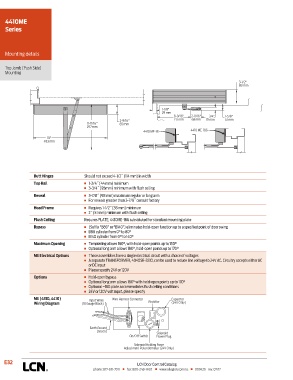

Page 226 - Herrajes Patricios - Catalogo LCN

4410ME
Series

Mounting details

Top Jamb (Push Side)
Mounting

3-1/2"
89 mm

1-1/8"
29 mm
8-9/16" 2-11/16" 3/4" 1-5/8"
2-9/16" 217 mm 68 mm 19 mm 41 mm
11-11/16" 65 mm
297 mm
4410 ME-18 4410 ME-18G
19"
483 mm

Butt Hinges Should not exceed 4-1/2˝ (114 mm) in width
Top Rail n 1-3/4˝ (44 mm) minimum
n 3-3/4˝ (95mm) minimum with flush ceiling
Reveal n 3-7/8˝ (98 mm) maximum regular or long arm
n For reveals greater than 3-7/8˝ consult factory
Head Frame n Requires 1-1/2˝ (38 mm) minimum
n 2˝ (51 mm) minimum with flush ceiling
Flush Ceiling Requires PLATE, 4410ME-18G substituted for standard mounting plate
Bypass n (Suffix “B80” or “B140”) eliminates hold-open function up to a specified point of door swing
n B80 cylinder from 0° to 80°
n B140 cylinder from 0° to 140°
Maximum Opening n Templating allows 160°, with hold-open points up to 150°
n Optional long arm allows 180°, hold-open points up to 170°
ME Electrical Options n These assemblies have a single electrical circuit with a choice of voltages
n A separate TRANSFORMER, 4040SE-3210, can be used to reduce line voltage to 24V AC. Circuitry accepts either AC
or DC input
n Please specify 24V or 120V
Options n Hold-open bypass
n Optional long arm allows 180° with hold-open points up to 170°
n Optional –18G plate accommodates flush ceiling conditions
n 24V or 120V volt input, please specify
ME (4310, 4410) Input Wires Wire Harness Connector Capacitor
Wiring Diagram (18 Gauge Black) Rectifier (24V Only)

Earth Ground
(Green) Solenoid
On/Off Switch Power Plug
Solenoid Holding Force
Adjustment Potentiometer (24V Only)

E32 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
