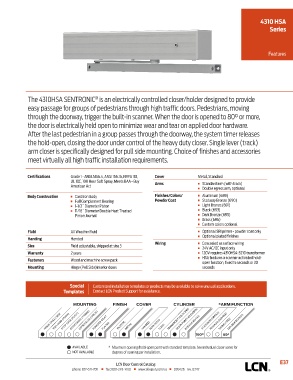

4310 HSA
Series

Features

®
The 4310HSA SENTRONIC is an electrically controlled closer/holder designed to provide
easy passage for groups of pedestrians through high traffic doors. Pedestrians, moving
through the doorway, trigger the built-in scanner. When the door is opened to 80° or more,

the door is electrically held open to minimize wear and tear on applied door hardware.
After the last pedestrian in a group passes through the doorway, the system timer releases
the hold-open, closing the door under control of the heavy duty closer. Single lever (track)
arm closer is specifically designed for pull side mounting. Choice of finishes and accessories

meet virtually all high traffic installation requirements.

Certifications Grade 1 - ANSI A156.4, ANSI 156.15, NFPA 101, Cover Metal, Standard
UL 10C, 100 Hour Salt Spray, Meets BAA - Buy Arms n Standard arm (with track)
American Act
n Double egress arm, optional
Body Construction n Cast Iron Body Finishes/Colors/ n Aluminum (689)
n Full Complement Bearing Powder Coat n Statuary Bronze (690)
n 1-1/2˝ Diameter Piston n Light Bronze (691)
n 11/16˝ Diameter Double Heat Treated n Black (693)
Pinion Journal n Dark Bronze (695)
n Brass (696)
n Custom colors optional
Fluid All Weather Fluid n Optional SRI primer - powder coat only
n Optional plated finishes
Handing Handed
Wiring n Concealed or surface wiring
Size Field adjustable, shipped at size 3 n 24V AC/DC input only
Warranty 2 years n 120V requires 4310HSA-3210 transformer
n HSA features a scanner activated hold-
Fasteners Wood and machine screw pack
open function, fixed 15 seconds or 30
Mounting Hinge (Pull Side)interior doors seconds

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
MULTI-POINT HOLD-OPEN
CONCEALED (FRAME)
REGULAR (DOUBLE)
TOP JAMB (PUSH)
HINGE (PULL) SIDE STOP FACE (PUSH) CONCEALED (DOOR) PLATED PLASTIC METAL HANDED NON-SIZED SIZED SINGLE POINT HOLD-OPEN BYPASS 80/140 STANDARD (SINGLE) SWING FREE DOUBLE EGRESS
POWDER COAT
160° 95°

AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
NOT AVAILABLE degrees of opening per installation.

E37
