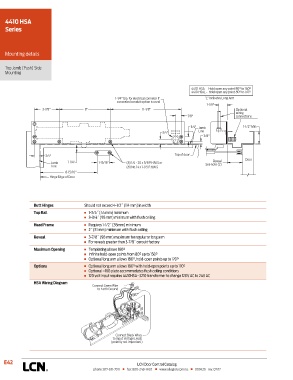

4410 HSA
Series

Mounting details

Top Jamb (Push) Side
Mounting

4410 HSA - Hold open any point 80° to 160°
4410 HSAL - Hold open any point 80° to 170°
1-1/4" Dia. for electrical connetor if “L” Indicates Long Arm
concealed conduit option is used
1-1/8"
3-7/8" 8" 11-1/8" Optional
wiring
7/8" connections
3/4" Jamb 1-1/2" Min.
3/4" Line
3/8"

3/4" Top of door
Reveal
Jamb 1-1/4" 1-15/16" (8) 1/4 - 20 x 5/8 P.H.M.S or See note (2) Door
Line (8) No. 14 x 1-1/5 P.H.W.S
8-15/16"
Hinge Edge of Door

Butt Hinges Should not exceed 4-1/2˝ (114 mm) in width
Top Rail n 1-3/4˝ (44 mm) minimum
n 3-3/4˝ (95 mm) minimum with flush ceiling
Head Frame n Requires 1-1/2˝ (38mm) minimum
n 2˝ (51 mm) minimum with flush ceiling
Reveal n 3-7/8˝ (98 mm) maximum for regular or long arm
n For reveals greater than 3-7/8˝ consult factory
Maximum Opening n Templating allows 160°
n Infinite hold-open points from 80° up to 150°
n Optional long arm allows 180°, hold-open points up to 170°
Options n Optional long arm allows 180° with hold-open points up to 170°
n Optional –18G plate accommodates flush ceiling conditions
n 120 volt input requires 4410HSA–3210 transformer to change 120V AC to 24V AC
HSA Wiring Diagram
Connect Green Wire
to Earth Ground

Connect Black Wires
to Input Voltage Leads
(polarity not important)

E42 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
