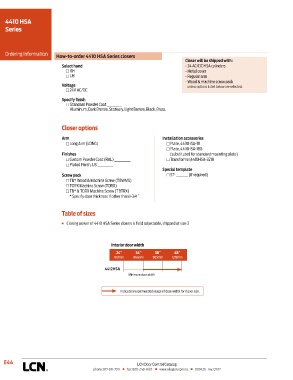

Page 238 - Herrajes Patricios - Catalogo LCN

4410 HSA
Series

Ordering Information How-to-order 4410 HSA Series closers
Closer will be shipped with:
Select hand - 24 AC/DC HSA cylinders
RH - Metal cover
LH - Regular arm
- Wood & machine screw pack
Voltage unless options listed below are selected.
24V AC/DC
Specify finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer options

Arm Installation accessories
Long Arm (LONG) Plate, 4410HSA-18
Plate, 4410HSA-18G
Finishes (substituted for standard mounting plate)
Custom Powder Coat (RAL) ___________ Transformer,4410HSA-3210
Plated Finish, US ___________
Special template
Screw pack ST- ________ (if required)
TB*, Wood & Machine Screw (TBWMS)
TORX Machine Screw (TORX)
TB* & TORX Machine Screw (TBTRX)
* Specify door thickness if other than 1-3/4˝

Table of sizes

n Closing power of 4410 HSA Series closers is field adjustable, shipped at size 3

Interior door width
24˝ 34˝ 38˝ 48˝
610mm 864mm 965mm 1219mm

4412HSA
Minimum door width

Indicates recommended range of door width for closer size.

E44 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
