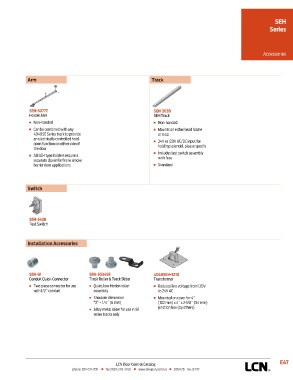

Page 241 - Herrajes Patricios - Catalogo LCN

SEH
Series

Accessories

Arm Track

SEH-3077T SEH-3038
Holder Arm SEH Track
n Non-handed n Non-handed
n Can be combined with any
WIRING DIAGRAM n Mounts on either head frame
INPUT VOLTAGE 4040SE Series track to provide
24V AC/DC or stop
OR 120V AC/DC an electrically controlled hold-
(USUALLY FROM n 24V or 120V AC/DC input for
ALARM PANEL open function on either side of
OR DETECTOR) holding solenoid, please specify
the door
n Includes test switch assembly
n All SEH type holders require a with fuse
separate closer for fire or smoke
CHASSIS GROUND
barrier door applications n Standard
Switch

SEH-3436
Test Switch

Installation Accessories

SEH-81 SEH-3034SE 4040SEH-3210
Conduit Quick-Connector Track Roller & Track Slider Transformer
n Two piece connector for use n Quiet, low friction roller n Reduces line voltage from 120V
with 1/2˝ conduit assembly to 24V AC
n Shoulder dimension n Mounted on cover for 4˝
“X” = 1/4˝ (6 mm) (102 mm) x 4˝ x 2-1/8˝ (54 mm)
n Alloy metal slider for use in SE junction box (by others)
series tracks only
