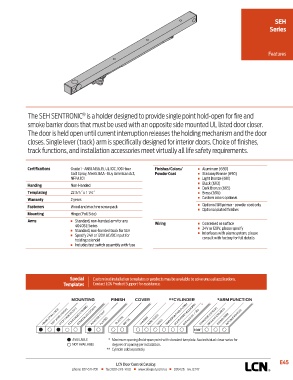

SEH
Series

Features

The SEH SENTRONIC is a holder designed to provide single point hold-open for fire and
®
smoke barrier doors that must be used with an opposite side mounted UL listed door closer.

The door is held open until current interruption releases the holding mechanism and the door
closes. Single lever (track) arm is specifically designed for interior doors. Choice of finishes,
track functions, and installation accessories meet virtually all life safety requirements.

Certifications Grade 1 - ANSI A156.15, UL 10C, 100 Hour Finishes/Colors/ n Aluminum (689)
Salt Spray, Meets BAA - Buy American Act, Powder Coat n Statuary Bronze (690)
NFPA 101 n Light Bronze (691)
n Black (693)
Handing Non-Handed
n Dark Bronze (695)
Templating 22 3/4˝ x 1 1/4˝ n Brass (696)
n Custom colors optional
Warranty 2 years
n Optional SRI primer - powder coat only
Fasteners Wood and machine screw pack
n Optional plated finishes
Mounting Hinge (Pull Side)
Arms n Standard, non-handed arm for any
4040SE Series Wiring n Concealed or surface
n Standard, non-handed track for SEH n 24V or 120V, please specify
n Specify 24V or 120V AC/DC input for n Interfaces with alarm system, please
holding solenoid consult with factory for full details
n Includes test switch assembly with fuse

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER **CYLINDER *ARM FUNCTION
MULTI-POINT HOLD-OPEN
CONCEALED (FRAME)
REGULAR (DOUBLE)
TOP JAMB (PUSH)
HINGE (PULL) SIDE STOP FACE (PUSH) CONCEALED (DOOR) PLATED PLASTIC METAL HANDED NON-SIZED SIZED SINGLE POINT HOLD-OPEN BYPASS 80 / 140 STANDARD (SINGLE) SWING FREE DOUBLE EGRESS
POWDER COAT
100

AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
NOT AVAILABLE degrees of opening per installation.
** Cylinder sold separately.

E45
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
