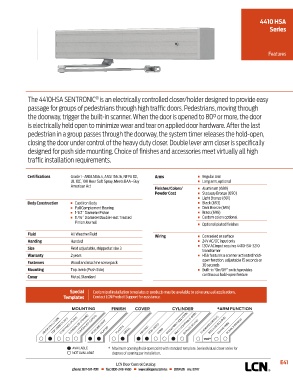

4410 HSA
Series

Features

®
The 4410HSA SENTRONIC is an electrically controlled closer/holder designed to provide easy
passage for groups of pedestrians through high traffic doors. Pedestrians, moving through
the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door

is electrically held open to minimize wear and tear on applied door hardware. After the last
pedestrian in a group passes through the doorway, the system timer releases the hold-open,
closing the door under control of the heavy duty closer. Double lever arm closer is specifically
designed for push side mounting. Choice of finishes and accessories meet virtually all high

traffic installation requirements.

Certifications Grade 1 - ANSI A156.4, ANSI 156.16, NFPA 101, Arms n Regular Arm
UL 10C, 100 Hour Salt Spray, Meets BAA - Buy n Long arm, optional
American Act
Finishes/Colors/ n Aluminum (689)
Powder Coat n Statuary Bronze (690)
n Light Bronze (691)
Body Construction n Cast Iron Body n Black (693)
n Full Complement Bearing n Dark Bronze (695)
n 1-1/2˝ Diameter Piston n Brass (696)
n 11/16˝ Diameter Double Heat Treated n Custom colors optional
Pinion Journal n Optional plated finishes

Fluid All Weather Fluid Wiring n Concealed or surface
Handing Handed n 24V AC/DC input only
n 120V AC input requires 4410HSA-3210
Size Field adjustable, shipped at size 3 transformer
Warranty 2 years n HSA features a scanner activated hold-
open function, adjustable 15 seconds or
Fasteners Wood and machine screw pack
30 seconds
Mounting Top Jamb (Push Side) n Built-in “On/Off” switch provides
continuous hold-open feature
Cover Metal, Standard

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
MULTI-POINT HOLD-OPEN
CONCEALED (FRAME)
REGULAR (DOUBLE)
TOP JAMB (PUSH)
HINGE (PULL) SIDE STOP FACE (PUSH) CONCEALED (DOOR) PLATED PLASTIC METAL HANDED NON-SIZED SIZED SINGLE POINT HOLD-OPEN BYPASS 80/140 STANDARD (SINGLE) SWING FREE DOUBLE EGRESS
POWDER COAT
150°
AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
NOT AVAILABLE degrees of opening per installation.

E41
