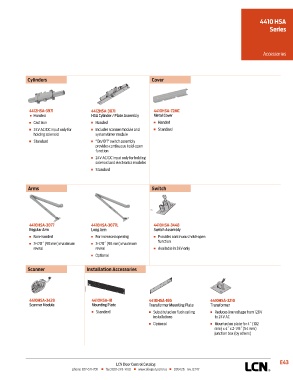

4410 HSA
Series

Accessories

Cylinders Cover

4412HSA-3971 4412HSA-3071 4410HSA-72MC
n Handed HSA Cylinder / Plate Assembly Metal Cover
n Cast iron n Handed n Handed
n 24V AC/DC input only for n Includes scanner module and n Standard
holding solenoid system timer module
n Standard n “On/Off” switch assembly
provides continuous hold-open
function
WIRING DIAGRAM
INPUT VOLTAGE
24V AC/DC n 24V AC/DC input only for holding
OR 120V AC/DC
(USUALLY FROM solenoid and electronics modules
ALARM PANEL
OR DETECTOR)
n Standard
CHASSIS GROUND
3448
Arms Switch

3351

4410HSA-3077 4410HSA-3077L 4410HSA-3448
Regular Arm Long Arm Switch Assembly
n Non-handed n For increased opening n Provides continuous hold-open
function
n 3-7/8˝ (98 mm) maximum n 3-7/8˝ (98 mm) maximum
reveal reveal n Available in 24V only
n Optional

Scanner Installation Accessories

4410HSA-3428 4410HSA-18 4410HSA-18G 4410HSA-3210
Scanner Module Mounting Plate Transformer Mounting Plate Transformer
n Standard n Substituted on flush ceiling n Reduces line voltage from 120V
installations to 24V AC
n Optional n Mounted on plate for 4˝ (102
mm) x 4˝ x 2-1/8˝ (54 mm)
junction box (by others)
