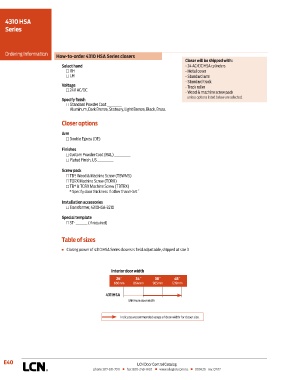

Page 234 - Herrajes Patricios - Catalogo LCN

4310 HSA
Series

Ordering Information How-to-order 4310 HSA Series closers
Closer will be shipped with:
Select hand - 24 AC/DC HSA cylinders
RH - Metal cover
LH - Standard arm
- Standard track
Voltage - Track roller
24V AC/DC
- Wood & machine screw pack
unless options listed below are selected.
Specify finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer options

Arm
Double Egress (DE)
Finishes
Custom Powder Coat (RAL) ___________
Plated Finish, US ___________

Screw pack
TB*, Wood & Machine Screw (TBWMS)
TORX Machine Screw (TORX)
TB* & TORX Machine Screw (TBTRX)
* Specify door thickness if other than 1-3/4˝

Installation accessories
Transformer, 4310HSA-3210

Special template
ST- ________ (if required)

Table of sizes
n Closing power of 4310 HSA Series closers is field adjustable, shipped at size 3

Interior door width
26˝ 34˝ 38˝ 48˝
660mm 864mm 965mm 1219mm

4311HSA
Minimum door width

Indicates recommended range of door width for closer size.
