P. 229

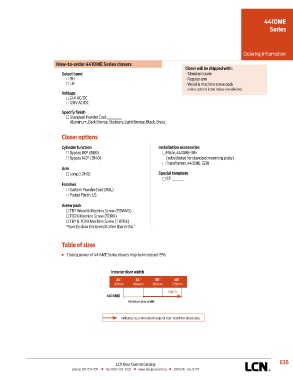

4410ME
Series
Ordering Information
How-to-order 4410ME Series closers
Closer will be shipped with:
Select hand - Standard cover
RH - Regular arm
LH - Wood & machine screw pack
unless options listed below are selected.
Voltage
24V AC/DC
120V AC/DC
Specify finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.
Closer options
Cylinder function Installation accessories
Bypass 80° (B80) Plate, 4410ME-18G
Bypass 140° (B140) (substituted for standard mounting plate)
Transformer, 4410ME-3210
Arm
Long (LONG) Special template
ST- ________
Finishes
Custom Powder Coat (RAL)
Plated Finish, US
Screw pack
TB*, Wood & Machine Screw (TBWMS)
TORX Machine Screw (TORX)
TB* & TORX Machine Screw (TBTRX)
*Specify door thickness if other than 1-3/4˝
Table of sizes
n Closing power of 4414ME Series closers may be increased 15%
Interior door width
24˝ 34˝ 38˝ 48˝
610mm 864mm 965mm 1219mm
size 4
4414ME
Minimum door width
Indicates recommended range of door width for closer size.
E35
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
