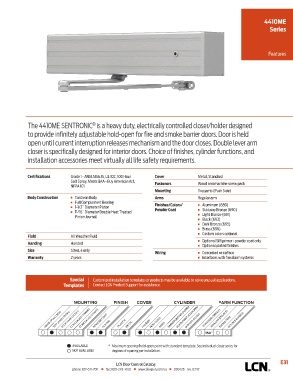

Page 225 - Herrajes Patricios - Catalogo LCN

4410ME
Series

Features

®
The 4410ME SENTRONIC is a heavy duty, electrically controlled closer/holder designed
to provide infinitely adjustable hold-open for fire and smoke barrier doors. Door is held
open until current interruption releases mechanism and the door closes. Double lever arm
closer is specifically designed for interior doors. Choice of finishes, cylinder functions, and

installation accessories meet virtually all life safety requirements.

Certifications Grade 1 - ANSI A156.15, UL 10C, 100 Hour Cover Metal, Standard
Salt Spray, Meets BAA - Buy American Act, Fasteners Wood and machine screw pack
NFPA 101
Mounting Top jamb (Push Side)
Body Construction n Cast iron Body Arms Regular arm
n Full Complement Bearing Finishes/Colors/ n Aluminum (689)
n 1-1/2˝ Diameter Piston Powder Coat n Statuary Bronze (690)
n 11/16˝ Diameter Double Heat Treated n Light Bronze (691)
Pinion Journal
n Black (693)
n Dark Bronze (695)
n Brass (696)
n Custom colors optional
Fluid All Weather Fluid
n Optional SRI primer - powder coat only
Handing Handed
n Optional plated finishes
Size Sized, 4 only
Wiring n Concealed or surface
Warranty 2 years n Interfaces with fire alarm systems

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
MULTI-POINT HOLD-OPEN
CONCEALED (FRAME)
REGULAR (DOUBLE)
HINGE (PULL) SIDE STOP FACE (PUSH) CONCEALED (DOOR) PLATED PLASTIC METAL HANDED NON-SIZED SIZED SINGLE POINT HOLD-OPEN BYPASS 80/140 STANDARD (SINGLE) SWING FREE DOUBLE EGRESS
TOP JAMB (PUSH)
POWDER COAT
150

AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
NOT AVAILABLE degrees of opening per installation.

E31
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
