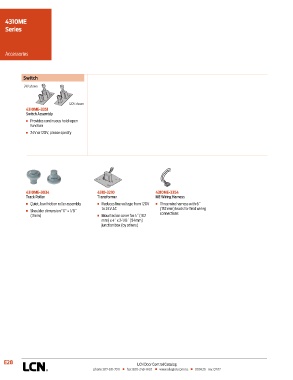

P. 222
4310ME
Series
Accessories
WIRING DIAGRAM
INPUT VOLTAGE
24V AC/DC
OR 120V AC/DC
Switch (USUALLY FROM
ALARM PANEL
OR DETECTOR)
24V shown
CHASSIS GROUND
120V shown
4310ME-3351
Switch Assembly
n Provides continuous hold-open
function
n 24V or 120V, please specify
4310ME-3034 4310-3210 4310ME-3354
Track Roller Transformer ME Wiring Harness
n Quiet, low friction roller assembly n Reduces line voltage from 120V n Three wire harness with 6˝
n Shoulder dimension “X” = 1/8˝ to 24V AC (152 mm) leads for field wiring
(3mm) n Mounted on cover for 4˝ (102 connections
mm) x 4˝ x 2-1/8˝ (54mm)
junction box (by others)
E28 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
