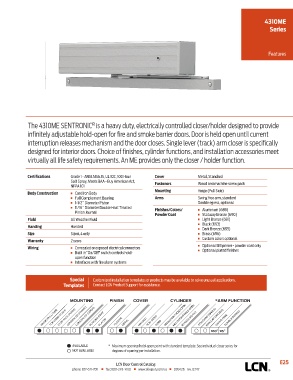

4310ME
Series

Features

The 4310ME SENTRONIC is a heavy duty, electrically controlled closer/holder designed to provide
®
infinitely adjustable hold-open for fire and smoke barrier doors. Door is held open until current
interruption releases mechanism and the door closes. Single lever (track) arm closer is specifically
designed for interior doors. Choice of finishes, cylinder functions, and installation accessories meet

virtually all life safety requirements. An ME provides only the closer / holder function.

Certifications Grade 1 - ANSI A156.15, UL 10C, 100 Hour Cover Metal, Standard
Salt Spray, Meets BAA - Buy American Act, Fasteners Wood and machine screw pack
NFPA 101
Mounting Hinge (Pull Side)
Body Construction n Cast Iron Body
n Full Complement Bearing Arms Swing free arm, standard
n 1-1/2˝ Diameter Piston Double egress, optional
n 11/16˝ Diameter Double Heat Treated Finishes/Colors/ n Aluminum (689)
Pinion Journal Powder Coat n Statuary Bronze (690)
Fluid All Weather Fluid n Light Bronze (691)
n Black (693)
Handing Handed
n Dark Bronze (695)
Size Sized, 4 only n Brass (696)
n Custom colors optional
Warranty 2 years
n Optional SRI primer - powder coat only
Wiring n Concealed or exposed electrical connectors
n Built in “On/Off” switch controls hold- n Optional plated finishes
open function
n Interfaces with fire alarm systems

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
MULTI-POINT HOLD-OPEN
CONCEALED (FRAME)
REGULAR (DOUBLE)
HINGE (PULL) SIDE STOP FACE (PUSH) CONCEALED (DOOR) PLATED PLASTIC METAL HANDED NON-SIZED SIZED SINGLE POINT HOLD-OPEN BYPASS 80/140 STANDARD (SINGLE) SWING FREE DOUBLE EGRESS
TOP JAMB (PUSH)
POWDER COAT
16095

AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
NOT AVAILABLE degrees of opening per installation.

E25
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
