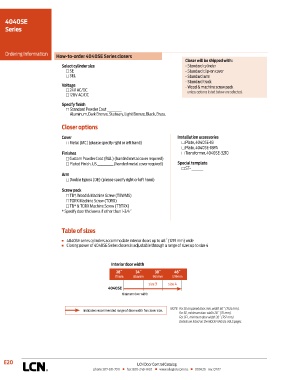

Page 214 - Herrajes Patricios - Catalogo LCN

4040SE
Series

Ordering Information How-to-order 4040SE Series closers
Closer will be shipped with:
Select cylinder size - Standard cylinder
SE - Standard clip-on cover
SEL - Standard arm
- Standard track
Voltage - Wood & machine screw pack
24V AC/DC unless options listed below are selected.
120V AC/DC
Specify finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer options

Cover Installation accessories
Metal (MC) (please specify right or left hand) Plate, 4040SE-18
Plate, 4040SE-18PA
Finishes Transformer, 4040SE-3210
Custom Powder Coat (RAL) (handed metal cover required)
Plated Finish, US ___________ (handed metal cover required) Special template
ST- ________
Arm
Double Egress (DE) (please specify right or left hand)

Screw pack
TB*, Wood & Machine Screw (TBWMS)
TORX Machine Screw (TORX)
TB* & TORX Machine Screw (TBTRX)
* Specify door thickness if other than 1-3/4˝

Table of sizes

n 4040SE series cylinders accommodate interior doors up to 48˝ (1219 mm) wide
n Closing power of 4040SE Series closers is adjustable through a range of sizes up to size 4

Interior door width
28˝ 34˝ 38˝ 48˝
711mm 864mm 965mm 1219mm
size 3 size 4
4040SE
Minimum door width

NOTE: For SE on paired door, min. width 60˝ (1524 mm).
Indicates recommended range of door width for closer size.
For SE, minimum door width 28˝ (711 mm).
For SEL, minimum door width 30˝ (762 mm).
Details are listed on the MOUNTING DETAILS pages.

E20 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
