2210
Series

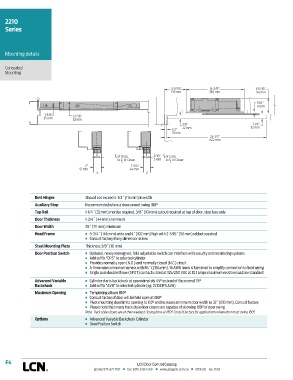

Mounting details

Concealed
Mounting

5-5/16" 14-3/8" 3-11/16"
135 mm 365 mm 94 mm

7/16"
11 mm
1-3/8" 2-1/16"
35 mm 52 mm
7/8" 1-1/4"
1/2" 22 mm 32 mm
13 mm
24-1/2"
622 mm

of Track 3/16" of Track
to of Closer 5 mm to of Closer
2" 1-3/4"
51 mm 44 mm

Butt Hinges Should not exceed 4-1/2˝ (114 mm) in width
Auxiliary Stop Recommended where a door cannot swing 180°
Top Rail 1-1/4˝ (32 mm) mortise required. 3/8˝ (10 mm) cutout required at top of door, stop face only
Door Thickness 1-3/4˝ (44 mm) minimum
Door Width 28˝ (711 mm) minimum
Head Frame n 5-3/4˝ (146 mm) wide and 4˝ (102 mm) high with 2-3/16˝ (56 mm) rabbet required
n Consult factory if any dimension is less
Steel Mounting Plate Thickness 3/8˝ (10 mm)
Door Position Switch n Optional, newly redesigned, field adjustable switch can interface with security and monitoring systems
n Add suffix “DPS” to selected cylinder
n Provides normally open (N.O.) and normally closed (N.C.) circuit
n A three wire connector harness with 84˝ (2134 mm), 16 AWG leads is furnished to simplify connection to field wiring
n Single pole double throw (SPDT) contacts rated at 125/250 VAC at 10.1 amps maximum resistive load are standard
Advanced Variable n Cylinder starts backcheck at approximately 45° instead of the normal 75°
Backcheck n Add suffix “AVB” to selected cylinder (eg. 2213 DPS AVB)
Maximum Opening n Templating allows 180°
n Consult factory if door will be held open at 180°
n Pivot mounting door limits opening to 110° and increases minimum door width to 32˝ (813 mm). Consult factory
n Please note that many track style door closers are capable of allowing 180° of door swing
Note: Track style closers are at their weakest closing force at 180°. Consult factory for applications where door must swing 180°.
Options n Advanced Variable Backcheck Cylinder
n Door Position Switch
