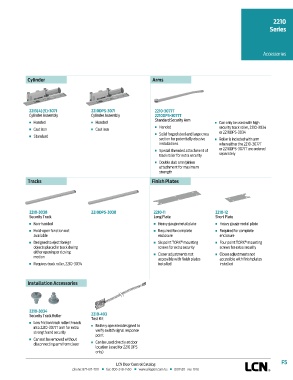

Page 247 - Herrajes Patricios - Catalogo LCN

2210
Series

Accessories

Cylinder Arms

2213(4)(5)-3071 2210DPS-3071 2210-3077T
Cylinder Assembly Cylinder Assembly 2210DPS-3077T
Standard Security Arm
n Handed n Handed n Can only be used with high
n Handed security track roller, 2210-3034
n Cast iron n Cast iron
n Solid forged steel and large cross or 2210DPS-3034
n Standard
section for potentially abusive n Roller is included with arm
installations when either the 2210-3077T
n Special threaded attachment of or 2210DPS-3077T are ordered
track roller for extra security separately
n Double slab arm/pinion
attachment for maximum
strength
Tracks Finish Plates

2210-3038 2210DPS-3038 2210-11 2210-12
Security Track Long Plate Short Plate
n Non-handed n Heavy gauge metal plate n Heavy gauge metal plate
n Hold-open function not n Required for complete n Required for complete
available enclosure enclosure
®
n Designed to eject foreign n Six point TORX mounting n Four point TORX mounting
®
objects placed in track during screws for extra security screws for extra security
either opening or closing n Closer adjustments not n Closer adjustments not
motion
accessible with finish plates accessible with finish plates
n Requires track roller, 2210-3034 installed installed

Installation Accessories

2210-3034
Security Track Roller 2210-493
Test Kit
n Low friction track roller threads
into 2210-3077T arm for extra n Battery operated designed to
strength and security verify switch signal response
point
n Can not be removed without
disconnecting arm from closer n Can be used directly at door
location (used for 2210 DPS
only)

F5
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
