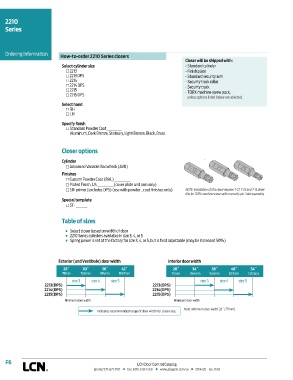

Page 248 - Herrajes Patricios - Catalogo LCN

2210
Series

Ordering Information How-to-order 2210 Series closers
Closer will be shipped with:
Select cylinder size - Standard cylinder
2213 - Finish plate
2213 DPS - Standard security arm
2214 - Security track roller
2214 DPS - Security track
2215
2215 DPS - TORX machine screw pack,
unless options listed below are selected.
Select hand
RH
LH

Specify finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer options

Cylinder
Advanced Variable Backcheck (AVB)
Finishes
Custom Powder Coat (RAL) ___________
Plated Finish, US ___________ (cover plate and arm only)
SRI primer (excludes DPS) (use with powder _ coat finishes only) NOTE: Installation of this closer requires T-27, T-25 and T-15 driver
bits for TORX machine screws with a security pin. Sold separately.
Special template
ST- ________

Table of sizes

n Select closer based on width of door
n 2210 Series cylinders available in size 3, 4, or 5
n Spring power is set at the factory for size 3, 4, or 5, but is field adjustable (may be increased 50%)

Exterior (and Vestibule) door width Interior door width

28˝ 30˝ 36˝ 42˝ 28˝ 34˝ 38˝ 48˝ 54˝
711mm 762mm 914mm 1067mm 711mm 864mm 965mm 1219mm 1372mm
size 3 size 4 size 5 size 3 size 4 size 5
2213(DPS) 2213(DPS)
2214(DPS) 2214(DPS)
2215(DPS) 2215(DPS)
Minimum door width Minimum door width
Note: Minimum door width 28˝ (711mm).
Indicates recommended range of door width for closer size.

F6 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
