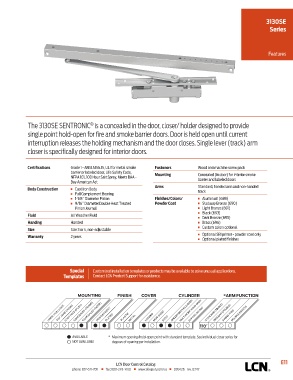

3130SE
Series

Features

®
The 3130SE SENTRONIC is a concealed in the door, closer/ holder designed to provide
single point hold-open for fire and smoke barrier doors. Door is held open until current
interruption releases the holding mechanism and the door closes. Single lever (track) arm
closer is specifically designed for interior doors.

Certifications Grade 1 - ANSI A156.15, UL/for metal smoke Fasteners Wood and machine screw pack
barrier or labeled door, Life Safety Code, Mounting Concealed (in door) for interior smoke
NFPA 101, 100 Hour Salt Spray, Meets BAA - barrier and labeled doors
Buy American Act
Arms Standard, handed arm and non-handed
Body Construction n Cast Iron Body track
n Full Complement Bearing
n 1-1/8˝ Diameter Piston Finishes/Colors/ n Aluminum (689)
n 9/16˝ Diameter Double Heat Treated Powder Coat n Statuary Bronze (690)
Pinion Journal n Light Bronze (691)
n Black (693)
Fluid All Weather Fluid
n Dark Bronze (695)
Handing Handed n Brass (696)
n Custom colors optional
Size Size 3 or 4, non-adjustable
n Optional SRI primer - powder coat only
Warranty 2 years
n Optional plated finishes

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
MULTI-POINT HOLD-OPEN
CONCEALED (FRAME)
REGULAR (DOUBLE)
HINGE (PULL) SIDE STOP FACE (PUSH) CONCEALED (DOOR) PLATED PLASTIC METAL HANDED NON-SIZED SIZED SINGLE POINT HOLD-OPEN BYPASS 80/140 STANDARD (SINGLE) SWING FREE DOUBLE EGRESS
TOP JAMB (PUSH)
POWDER COAT
110

AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
NOT AVAILABLE degrees of opening per installation.

E11
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
