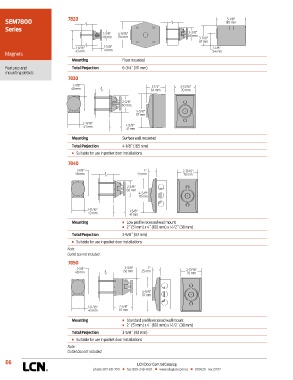

Page 200 - Herrajes Patricios - Catalogo LCN

5-1/8"
SEM7800 7820 130 mm
Series
1-7/8" 4-9/16" 2-3/8"
48 mm 116 mm 60 mm 3-7/16"
87 mm
1-11/16" 1-5/8" 2-1/8"
41 mm
Magnets 43 mm 54 mm
Mounting Floor mounted
Features and Total Projection 6-3/4˝ (171 mm)
mounting details
7830
1-7/8" 2-1/2" 2-13/16"
48 mm 64 mm 70 mm

2-3/8"
60 mm
4-5/8"
117 mm

1-11/16"
43 mm 1-5/8"
41 mm
Mounting Surface wall mounted
Total Projection 4-1/8˝ (105 mm)
n Suitable for use in pocket door installations

7840
1-7/8" 1" 2-13/16"
48 mm 25 mm 70 mm

2-3/8"
60 mm
4-5/8"
117 mm

1-11/16" 1-5/8"
43 mm 41 mm
Mounting n Low profile recessed wall mount
n 2˝ (51 mm) x 4˝ (102 mm) x 1-1/2˝ (38 mm)
Total Projection 2-5/8˝ (67 mm)
n Suitable for use in pocket door installations
Note:
Outlet box not included.
7850
1-7/8" 2-3/8" 1" 2-13/16"
48 mm 60 mm 25 mm 70 mm

4-5/8"
117 mm

1-11/16" 2-5/8"
43 mm 67 mm
Mounting n Standard profile recessed wall mount
n 2˝ (51 mm) x 4˝ (102 mm) x 1-1/2˝ (38 mm)
Total Projection 3-5/8˝ (92 mm)
n Suitable for use in pocket door installations
Note:
Outlet box not included.
