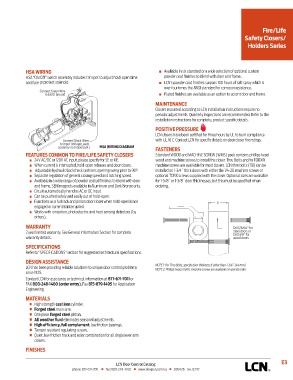

Page 197 - Herrajes Patricios - Catalogo LCN

Fire/Life
Safety Closers/
Holders Series

HSA WIRING n Available in six standard or a wide selection of optional custom
HSA “On/Off” switch assembly includes trim pot to adjust hold-open time powder coat finishes to blend with door and frame.
and fuse to protect solenoid. n LCN’s powder coat finishes surpass 100 hours of salt spray which is
over four times the ANSI standard for corrosion resistance.
Connect Green Wire
to Earth Ground n Plated finishes are available as an option to accent door and frame.
MAINTENANCE
Closers mounted according to LCN installation instructions require no
periodic adjustments. Quarterly inspections are recommended. Refer to the
installation instructions for complete, product specific details.

POSITIVE PRESSURE
LCN closers have been certified for three hours by UL to be in compliance
Connect Black Wires with UL 10 C. Contact LCN for specific details on door closer fire ratings.
to Input Voltage Leads
(polarity not important) HSA WIRING DIAGRAM FASTENERS
FEATURES COMMON TO FIRE/LIFE SAFETY CLOSERS Standard WOOD and MACHINE SCREW (WMS) pack contains phillips head
n 24V AC/DC or 120V AC input, please specify for SE or ME. wood and machine screws to install the closer. Thru Bolts and/or TORX®
n When current is interrupted, hold-open releases and door closes. machine screws are available for most closers. LCN thru bolts (TB) can be
n Adjustable hydraulic backcheck cushions opening swing prior to 90°. installed on 1-3/4˝ thick doors with either the 1/4-20 machine screws or
n Separate regulation of general closing speed and latching speed. optional TORX screws supplied with the closer. Optional sizes are available
n Available in a wide range of powder coated finishes to blend with door for 1-5/8˝ or 1-3/8˝ door thicknesses, but this must be specified when
and frame. SEM magnets available in Aluminum and Dark Bronze only. ordering.
n Circuit automatically handles AC or DC input.
n Can be pushed safely and easily out of hold-open.
n Functions as a full rack and pinion door closer when hold-open is not X
engaged or current is interrupted.
n Works with ionization, photoelectric and heat sensing detectors (by
others).
WARRANTY Drill 25/64" for
2 year limited warranty. See General Information Section for complete steel doors or
Drill 3/8" for
warranty details.. wood doors
SPECIFICATIONS
Refer to “SPECIFICATIONS” section for suggested architectural specifications.
DESIGN ASSISTANCE
LCN has been providing reliable solutions to unique door control problems NOTE 1: For Thru Bolts, specify door thickness if other than 1-3/4˝ (44 mm).
NOTE 2: Phillips head, metric machine screws are available on special order.
since 1925.
Contact LCN for assistance or technical information at 877-671-7011 or
FAX 800-248-1460 (order entry), Fax 815-879-1495 for Application
Engineering.
MATERIALS
n High strength cast iron cylinder.
n Forged steel main arm.
n One piece forged steel piston.
n All weather fluid eliminates seasonal adjustments.
n High efficiency, full complement, low friction bearings.
n Tamper resistant regulating screws.
n Quiet, low friction track and roller combination for all single lever arm
closers.
FINISHES

E3
