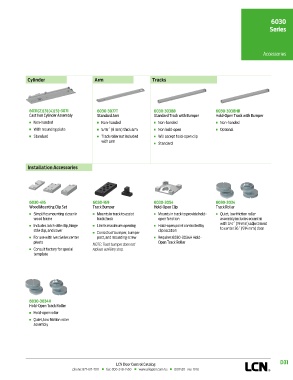

6030
Series

Accessories

Cylinder Arm Tracks

6031(2)(3)(4)(5)-3071 6030-3077T 6030-3038B 6030-3038HB
Cast Iron Cylinder Assembly Standard Arm Standard Track with Bumper Hold-Open Track with Bumper
n Non-handed n Non-handed n Non-handed n Non-handed
n With mounting plate n 5/16˝ (8 mm) thick arm n Non hold-open n Optional
n Standard n Track roller not included n Will accept hold-open clip
with arm
n Standard

Installation Accessories

6030-416 6030-169 6030-3054 6030-3034
Wood Mounting Clip Set Track Bumper Hold-Open Clip Track Roller
n Simplifies mounting closer in n Mounts in track to assist n Mounts in track to provide hold- n Quiet, low friction roller
wood frame backcheck open function assembly includes eccentric
n Includes latch stile clip, hinge n Limits maximum opening n Hold-open point controlled by with 3/4˝ (19 mm) adjustment
stile clip, and cover clip location to center 36˝ (914 mm) door
n Consists of bumper, bumper
n For use with Ives Series center post, and mounting screw n Requires 6030-3034H Hold-
pivots NOTE: Track bumper does not Open Track Roller
n Consult factory for special replace auxiliary stop.
template

6030-3034H
Hold-Open Track Roller
n Hold-open roller
n Quiet, low friction roller
assembly

D31
