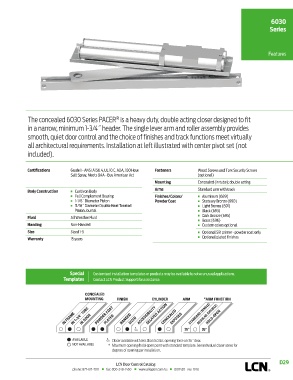

6030
Series

Features

®
The concealed 6030 Series PACER is a heavy duty, double acting closer designed to fit
in a narrow, minimum 1-3/4˝ header. The single lever arm and roller assembly provides

smooth, quiet door control and the choice of finishes and track functions meet virtually
all architectural requirements. Installation at left illustrated with center pivot set (not
included).

Certifications Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Fasteners Wood Screws and Torx Security Screws
Salt Spray, Meets BAA - Buy American Act (optional)
Mounting Concealed (in tube); double acting
Body Construction n Cast Iron Body Arms Standard arm with track
n Full Complement Bearing Finishes/Colors/ n Aluminum (689)
n 1-1/8˝ Diameter Piston Powder Coat n Statuary Bronze (690)
n 11/16˝ Diameter Double Heat Treated n Light Bronze (691)
Pinion Journal n Black (693)
n Dark Bronze (695)
Fluid All Weather Fluid
n Brass (696)
Handing Non-Handed n Custom colors optional
Size Sized 1-5 n Optional SRI primer - powder coat only
n Optional plated finishes
Warranty 15 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

CONCEALED
MOUNTING FINISH CYLINDER ARM *ARM FUNCTION
DELAYED ACTION
REGULAR (DOUBLE)
IN FRAME IN 1-3/4˝ TUBE POWDER COAT HANDED SIZED ACCESSIBILITY CONCEALED EXPOSED STANDARD (SINGLE) HOLD-OPEN
IN DOOR
PLATED
95° 95°

AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
NOT AVAILABLE
AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
NOT AVAILABLE degrees of opening per installation.

D29
