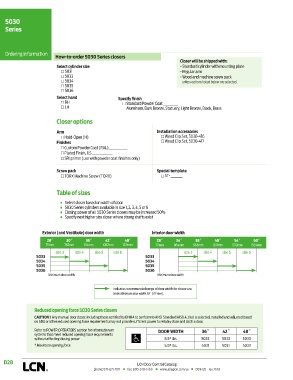

5030
Series

Ordering information
How-to-order 5030 Series closers
Closer will be shipped with:
Select cylinder size - Standard cylinder with mounting plate
5031 - Regular arm
5033 - Wood and machine screw pack
5034 unless options listed below are selected.
5035
5036
Select hand Specify finish
RH Standard Powder Coat __________
LH Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer options

Arm Installation accessories
Hold-Open (H) Wood Clip Set, 5030-416
Finishes Wood Clip Set, 5030-417
Custom Powder Coat (RAL)_____________
Plated Finish, US ______________
SRI primer (use with powder coat finishes only)

Screw pack Special template
TORX Machine Screw (TORX) ST- ________

Table of sizes

n Select closer based on width of door
n 5030 Series cylinders available in size 1, 2, 3, 4, 5 or 6
n Closing power of all 5030 Series closers may be increased 50%
n Specify next higher size closer where strong drafts exist

Exterior (and Vestibule) door width Interior door width
28˝ 30˝ 36˝ 42˝ 48˝ 28˝ 34˝ 38˝ 48˝ 54˝ 60˝
711mm 762mm 914mm 1067mm 1219mm 711mm 864mm 965mm 1219mm 1372mm 1524mm
size 3 size 4 size 5 size 6 size 3 size 4 size 5 size 6
5033 5033
5034 5034
5035 5035
5036 5036
Minimum door width Minimum door width

Indicates recommended range of door width for closer size.
Note: Minimum door width 28˝ (711 mm).

Reduced opening force 5030 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without affecting closing power. 8.5* lbs. 5033 5033 5033
* Maximum opening force. 5.0* lbs. 5031 5031 5033

D28 LCN Door Control Catalog
