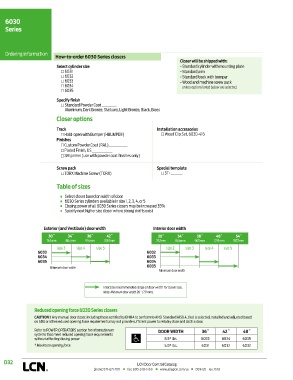

6030
Series

Ordering information
How-to-order 6030 Series closers
Closer will be shipped with:
Select cylinder size - Standard cylinder with mounting plate
6031 - Standard arm
6032 - Standard track with bumper
6033 - Wood and machine screw pack
6034 unless options listed below are selected.
6035
Specify finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass
Closer options

Track Installation accessories
Hold-open with Bumper (HBUMPER) Wood Clip Set, 6030-416
Finishes
Custom Powder Coat (RAL)_____________
Plated Finish, US ______________
SRI primer (use with powder coat finishes only)

Screw pack Special template
TORX Machine Screw (TORX) ST- ________

Table of sizes
n Select closer based on width of door
n 6030 Series cylinders available in size 1, 2, 3, 4, or 5
n Closing power of all 6030 Series closers may be increased 35%
n Specify next higher size closer where strong drafts exist

Exterior (and Vestibule) door width Interior door width
30˝ 34˝ 36˝ 42˝ 30˝ 34˝ 38˝ 48˝ 54˝
762mm 864mm 914mm 1067mm 762mm 864mm 965mm 1219mm 1372mm
size 3 size 4 size 5 size 2 size 3 size 4 size 5
6033 6032
6034 6033
6035 6034
6035
Minimum door width
Minimum door width

Indicates recommended range of door width for closer size.
Note: Minimum door width 28˝ (711 mm).

Reduced opening force 6030 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without affecting closing power. 8.5* lbs. 6033 6034 6035
* Maximum opening force. 5.0* lbs. 6031 6032 6032

D32 LCN Door Control Catalog
