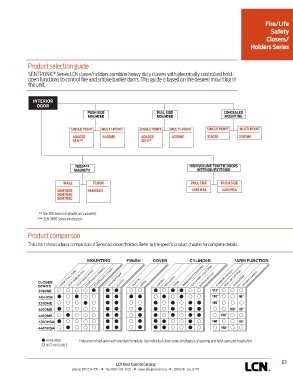

Page 195 - Herrajes Patricios - Catalogo LCN

Fire/Life
Safety
Closers/
Holders Series

Product selection guide
®
SENTRONIC Series LCN closer/holders combine heavy duty closers with electrically controlled hold-
open functions to control fire and smoke barrier doors. This guide is based on the desired mounting of
the unit.

INTERIOR
DOOR
PUSH SIDE PULL SIDE CONCEALED
MOUNTED MOUNTED MOUNTING

SINGLE POINT MULTI-POINT SINGLE POINT MULTI-POINT SINGLE POINT MULTI POINT

4040SE 4410ME 4040SE 4310ME 3130SE 2310ME
SEH** SEH**

7800*** HIGH VOLUME TRAFFIC DOORS
MAGNETS INTERIOR/EXTERIOR

WALL FLOOR PULL SIDE PUSH SIDE

SEM7830 SEM7820 4310 HSA 4410 HSA
SEM7840
SEM7850

** See SEH section (cylinder not included).
*** SEM 7800 Series are die cast.

Product comparison

This chart shows a basic comparison of Sentronic closer/holders. Refer to the specific product chapter for complete details..

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
MUL TI-POINT HOLD-OPEN
CONCEALED (FRAME)
REGULAR (DOUBLE)
TOP JAMB (PUSH)
HINGE (PULL) SIDE STOP FACE (PUSH) CONCEALED (DOOR) SINGLE POINT HOLD-OPEN BYPASS 80/140 ST ANDARD (SINGLE) DOUBLE EGRESS
POWDER COAT
CLOSER PLATED PLASTIC METAL HANDED NON-SIZED SIZED SWING FREE
SERIES
3130SE
4040SE
2310ME
4310ME
4410ME
4310HSA
4410HSA

AVAILABLE * Maximum hold-open with standard template. See individual closer series for degrees of opening and hold-open per installation.
NOT AVAILABLE

E1
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
