6030
Series

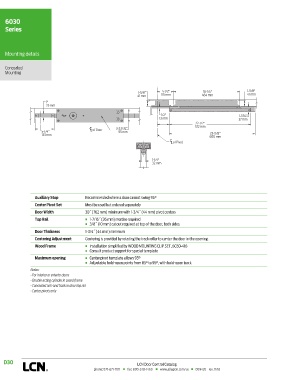

Mounting details

Concealed
Mounting

1-5/8" 4-1/2" 18-1/4" 1-5/8"
41 mm 115 mm 464 mm 41 mm
1"
25 mm
1/2" 1-7/16"
13 mm 37 mm
22-1/2"
572 mm
of Door 3-23/32"
5-1/4" 95 mm
133 mm 23-5/8"
600 mm
of Pivot

1-1/4"
32 mm

Auxiliary Stop Recommended where a door cannot swing 95°
Center Pivot Set Must be used but ordered separately
Door Width 30˝ (762 mm) minimum with 1-3/4˝ (44 mm) pivot centers
Top Rail n 1-7/16˝ (36 mm) mortise required
n 3/8˝ (10 mm) cutout required at top of the door, both sides.
Door Thickness 1-3/4˝ (44 mm) minimum
Centering Adjustment Centering is provided by rotating the track roller to center the door in the opening.
Wood Frame n Installation simplified by WOOD MOUNTING CLIP SET, 6030-416
n Consult product support for special template
Maximum opening n Center pivot template allows 95°
n Adjustable hold-open points from 85° to 95°, with hold-open track
Notes:
• For interior or exterior doors
• Double acting cylinder in cased frame
• Concealed arm and track in door top rail
• Center pivots only

D30 LCN Door Control Catalog
