5030
Series

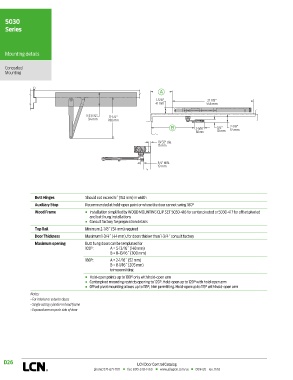

Mounting details

Concealed
Mounting

A
1-5/8" 21-7/8"
41 mm 556 mm

3-23/32" 11-1/4"
94 mm 286 mm
B 2-11/16" 3/4" 2-1/8"
54 mm
68 mm 19 mm
19/32" dia.
15 mm

3/4" MIN.
19 mm

Butt Hinges Should not exceed 6˝ (152 mm) in width
Auxiliary Stop Recommended at hold-open point or where the door cannot swing 180°
Wood Frame n Installation simplified by WOOD MOUNTING CLIP SET 5030-416 for center pivoted or 5030-417 for offset pivoted
and butt hung installations
n Consult factory for preparation details
Top Rail Minimum 2-1/8˝ (54 mm) required
Door Thickness Maximum 1-3/4˝ (44 mm), for doors thicker than 1-3/4˝ consult factory
Maximum opening Butt hung doors can be templated for
100°: A = 5-13/16˝ (148 mm)
B = 11-13/16˝ (300 mm)
180°: A = 2-1/16˝ (52 mm)
B = 8-1/16˝ (205 mm)
trim permitting
n Hold-open points up to 100° only with hold-open arm
n Center pivot mounting restricts opening to 120°. Hold-open up to 120° with hold-open arm
n Offset pivot mounting allows up to 115°, trim permitting. Hold-open up to 115° with hold-open arm
Notes:
• For interior or exterior doors
• Single acting cylinder in head frame
• Exposed arm on push side of door

D26 LCN Door Control Catalog
