5010
Series

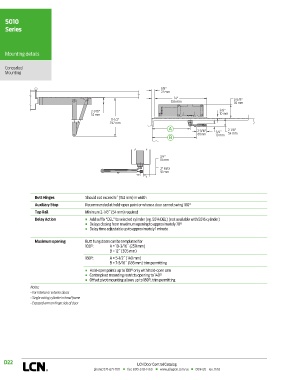

Mounting details

Concealed
Mounting

7/8"
22 mm
14" 3-5/8"
356 mm 92 mm
2-1/16" 3/8"
52 mm 10 mm
11-1/2"
292 mm
A 2-11/16" 3/4" 2-1/8"
68 mm 19 mm 54 mm
B

3/4"
19 mm
2" MAX
51 mm

Butt Hinges Should not exceed 6˝ (152 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Top Rail Minimum 2-1/8˝ (54 mm) required
Delay Action n Add suffix “DEL” to selected cylinder (eg. 5014 DEL) (not available with 5016 cylinder)
n Delays closing from maximum opening to approximately 70°
n Delay time adjustable up to approximately 1 minute

Maximum opening Butt hung doors can be templated for
100°: A = 10-3/16˝ (259 mm)
B = 12˝ (305 mm)
180°: A = 5-1/2˝ (140 mm)
B = 7-5/16˝ (186 mm) trim permitting
n Hold-open points up to 100° only with hold-open arm
n Center pivot mounting restricts opening to 140°
n Offset pivot mounting allows up to 180°, trim permitting
Notes:
• For interior or exterior doors
• Single acting cylinder in head frame
• Exposed arm on hinge side of door

D22 LCN Door Control Catalog
