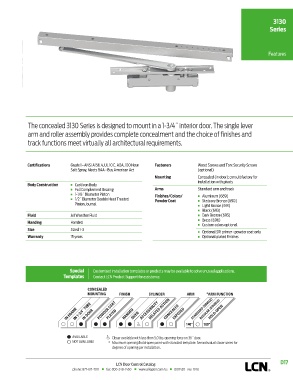

Series

Features

The concealed 3130 Series is designed to mount in a 1-3/4˝ interior door. The single lever
arm and roller assembly provides complete concealment and the choice of finishes and
track functions meet virtually all architectural requirements.

Certifications Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Fasteners Wood Screws and Torx Security Screws
Salt Spray, Meets BAA - Buy American Act (optional)
Mounting Concealed (in door); consult factory for
installation with pivots
Body Construction n Cast Iron Body
n Full Complement Bearing Arms Standard arm and track
n 1-1/8˝ Diameter Piston Finishes/Colors/ n Aluminum (689)
n 1/2˝ Diameter Double Heat Treated Powder Coat n Statuary Bronze (690)
Pinion Journal n Light Bronze (691)
n Black (693)
Fluid All Weather Fluid n Dark Bronze (695)
n Brass (696)
Handing Handed n Custom colors optional
Size Sized 1-3
n Optional SRI primer - powder coat only
Warranty 15 years n Optional plated finishes

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

CONCEALED
MOUNTING FINISH CYLINDER ARM *ARM FUNCTION
DELAYED ACTION
REGULAR (DOUBLE)
IN FRAME IN 1-3/4˝ TUBE POWDER COAT HANDED SIZED ACCESSIBILITY CONCEALED STANDARD (SINGLE) HOLD-OPEN
EXPOSED
IN DOOR
PLATED
140° 100°

AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
NOT AVAILABLE
NOT AVAILABLE degrees of opening per installation.
