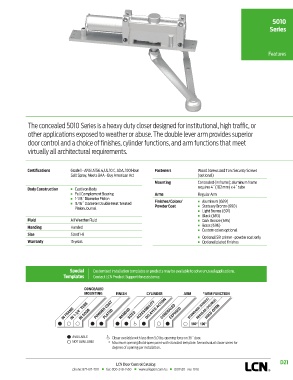

Page 183 - Herrajes Patricios - Catalogo LCN

5010
Series

Features

The concealed 5010 Series is a heavy duty closer designed for institutional, high traffic, or
other applications exposed to weather or abuse. The double lever arm provides superior
door control and a choice of finishes, cylinder functions, and arm functions that meet
virtually all architectural requirements.

Certifications Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Fasteners Wood Screws and Torx Security Screws
Salt Spray, Meets BAA - Buy American Act (optional)
Mounting Concealed (in frame); aluminum frame
Body Construction n Cast Iron Body requires 4˝ (102 mm) x 4˝ tube
n Full Complement Bearing Arms Regular Arm
n 1-1/8˝ Diameter Piston Finishes/Colors/
n 11/16˝ Diameter Double Heat Treated Powder Coat n Aluminum (689)
Pinion Journal n Statuary Bronze (690)
n Light Bronze (691)
n Black (693)
Fluid All Weather Fluid n Dark Bronze (695)
Handing Handed n Brass (696)
n Custom colors optional
Size Sized 1-6
n Optional SRI primer - powder coat only
Warranty 15 years n Optional plated finishes

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

CONCEALED
MOUNTING FINISH CYLINDER ARM *ARM FUNCTION
DELAYED ACTION
REGULAR (DOUBLE)
EXPOSED
IN FRAME IN 1-3/4˝ TUBE POWDER COAT HANDED SIZED ACCESSIBILITY CONCEALED STANDARD (SINGLE) HOLD-OPEN
IN DOOR
PLATED
180° 100°

AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
AVAILABLE
NOT AVAILABLE
NOT AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
degrees of opening per installation.

D21
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
