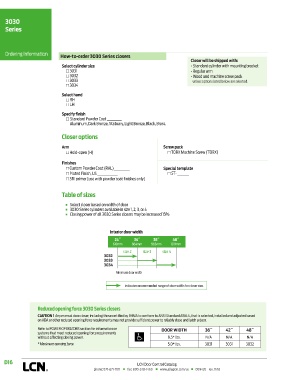

Page 178 - Herrajes Patricios - Catalogo LCN

3030
Series

Ordering Information How-to-order 3030 Series closers
Closer will be shipped with:
Select cylinder size - Standard cylinder with mounting bracket
3031 - Regular arm
3032 - Wood and machine screw pack
3033 unless options listed below are selected.
3034
Select hand
RH
LH

Specify finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer options

Arm Screw pack
Hold-open (H) TORX Machine Screw (TORX)

Finishes
Custom Powder Coat (RAL)___________ Special template
Plated Finish, US ______________ ST- ________
SRI primer (use with powder coat finishes only)

Table of sizes

n Select closer based on width of door
n 3030 Series cylinders available in size 1, 2, 3, or 4
n Closing power of all 3030 Series closers may be increased 15%

Interior door width
24˝ 34˝ 38˝ 48˝
610mm 864mm 965mm 1219mm
size 2 size 3 size 4
3032
3033
3034
Minimum door width

Indicates recommended range of door width for closer size.

Reduced opening force 3030 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without affecting closing power. 8.5* lbs. N/A N/A N/A
* Maximum opening force. 5.0* lbs. 3031 3031 3032

D16 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
