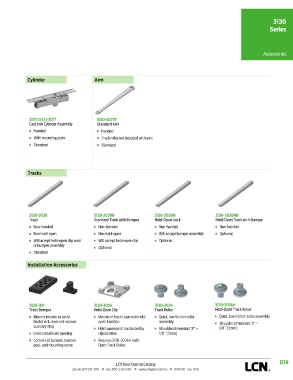

3130
Series

Accessories

Cylinder Arm

3131(2)(3)-3071 3130-3077T
Cast Iron Cylinder Assembly Standard Arm
n Handed n Handed
n With mounting plate n Track roller not included with arm
n Standard n Standard

Tracks

3130-3038 3130-3038B 3130-3038H 3130-3038HB
Track Standard Track with Bumper Hold-Open track Hold-Open Track with Bumper
n Non-handed n Non-handed n Non-handed n Non-handed
n Non hold-open n Non hold-open n Will accept bumper assembly n Optional
n Will accept hold-open clip and/ n Will accept hold-open clip n Optional
or bumper assembly n Optional
n Standard

Installation Accessories

3130-169 3130-3054 3130-3034 3130-3034H
Track Bumper Hold-Open Clip Track Roller Hold-Open Track Roller
n Mounts in track to assist n Mounts in track to provide hold- n Quiet, low friction roller n Quiet, low friction roller assembly
backcheck, does not replace open function assembly n Shoulder dimension “X” =
auxiliary stop
n Hold-open point controlled by n Shoulder dimension “X” = 1/8˝ (3mm)
n Limits maximum opening clip location 1/8˝ (3mm)
n Consists of bumper, bumper n Requires 3130-3034H Hold-
post, and mounting screw Open Track Roller

D19
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
