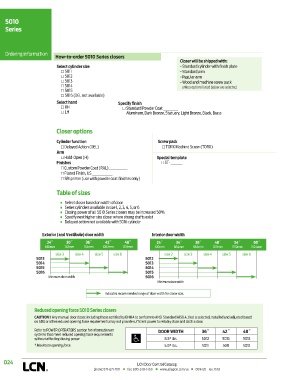

5010
Series

Ordering information
How-to-order 5010 Series closers
Closer will be shipped with:
Select cylinder size - Standard cylinder with finish plate
5011 - Standard arm
5012 - Regular arm
5013 - Wood and machine screw pack
5014 unless options listed below are selected.
5015
5016 (DEL not available)
Select hand Specify finish
RH Standard Powder Coat __________
LH Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer options

Cylinder function Screw pack
Delayed Action (DEL) TORX Machine Screw (TORX)
Arm
Hold-Open (H) Special template
Finishes ST- ________
Custom Powder Coat (RAL)_____________
Plated Finish, US ______________
SRI primer (use with powder coat finishes only)

Table of sizes

n Select closer based on width of door
n Series cylinders available in size 1, 2, 3, 4, 5, or 6
n Closing power of all 5010 Series closers may be increased 50%
n Specify next higher size closer where strong drafts exist
n Delayed action not available with 5016 cylinder

Exterior (and Vestibule) door width Interior door width
24˝ 30˝ 36˝ 42˝ 48˝ 24˝ 34˝ 38˝ 48˝ 54˝ 60˝
610mm 762mm 914mm 1067mm 1219mm 610mm 864mm 965mm 1219mm 1372mm 1524mm
size 3 size 4 size 5 size 6 size 2 size 3 size 4 size 5 size 6
5013 5012
5014 5013
5015 5014
5016 5015
Minimum door width 5016
Minimum door width

Indicates recommended range of door width for closer size.

Reduced opening force 5010 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without affecting closing power. 8.5* lbs. 5012 5013 5013
* Maximum opening force. 5.0* lbs. 5011 5011 5012

D24 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
