3130
Series

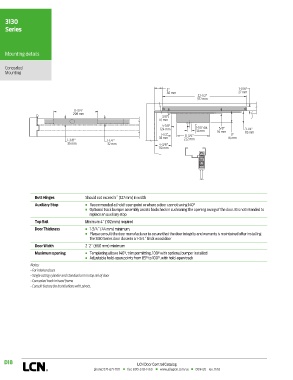

Mounting details

Concealed
Mounting

2" 1-1/16"
50 mm 27 mm
22-1/2"
572 mm
11-3/4"
298 mm
3/8"
10 mm
4-7/8" 1-1/4" dia.
5/8"
124 mm 32 mm 16 mm 3-1/4"
1-1/2" 8-3/4" 3" 83 mm
38 mm 222 mm 76 mm
1-3/8" 1-1/4"
35 mm 32 mm 4-3/8"
110 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended at hold-open point or where a door cannot swing 140°
n Optional track bumper assembly assists backcheck in cushioning the opening swing of the door. It is not intended to
replace an auxiliary stop
Top Rail Minimum 4˝ (102 mm) required
Door Thickness n 1-3/4˝ (44 mm) minimum.
n Please consult the door manufacturer to assure that the door integrity and warranty is maintained after installing
the 3130 Series door closer in a 1-3/4˝ thick wood door
Door Width 2´2˝ (660 mm) minimum
Maximum opening n Templating allows 140°, trim permitting. 100° with optional bumper installed
n Adjustable hold-open points from 85° to 100°, with hold-open track
Notes:
• For interior doors
• Single acting cylinder and standard arm in top rail of door
• Concealed track in head frame
• Consult factory for installations with pivots.

D18 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
