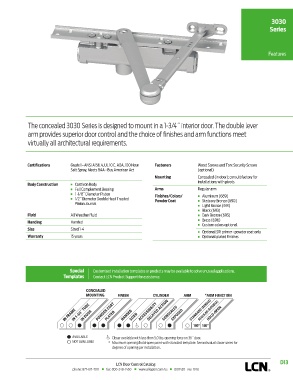

Page 175 - Herrajes Patricios - Catalogo LCN

3030
Series

Features

The concealed 3030 Series is designed to mount in a 1-3/4˝ interior door. The double lever
arm provides superior door control and the choice of finishes and arm functions meet
virtually all architectural requirements.

Certifications Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Fasteners Wood Screws and Torx Security Screws
Salt Spray, Meets BAA - Buy American Act (optional)
Mounting Concealed (in door); consult factory for
installations with pivots
Body Construction n Cast Iron Body
n Full Complement Bearing Arms Regular arm
n 1 -1/8˝ Diameter Piston Finishes/Colors/ n Aluminum (689)
n 1/2˝ Diameter Double Heat Treated Powder Coat n Statuary Bronze (690)
Pinion Journal n Light Bronze (691)
n Black (693)
Fluid All Weather Fluid n Dark Bronze (695)
n Brass (696)
Handing Handed
n Custom colors optional
Size Sized 1-4
n Optional SRI primer - powder coat only
Warranty 15 years n Optional plated finishes

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

CONCEALED
MOUNTING FINISH CYLINDER ARM *ARM FUNCTION
DELAYED ACTION
REGULAR (DOUBLE)
IN FRAME IN 1-3/4˝ TUBE POWDER COAT HANDED SIZED ACCESSIBILITY CONCEALED STANDARD (SINGLE) HOLD-OPEN
EXPOSED
IN DOOR
PLATED
180° 140°

AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
NOT AVAILABLE
NOT AVAILABLE
degrees of opening per installation.

D13
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
